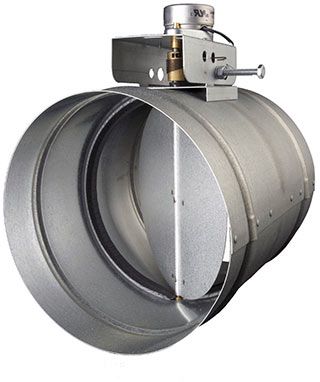

    Broan® 6" Automatic Make-Up Air Damper

    Model #: MD6T

    $249.00

    At a Glance

    Providing make-up air for exhaust devices is easy, controlling it is not – until now. BROAN® Directwire Make-Up Air Dampers, when interlocked with slave dampers, open in unison to provide synchronized operation for kitchen, bath and whole house ventilation products.

    Broan® 6" Automatic Make-Up Air Damper

    Overview

    Electrical requirements24 Volt, 60 Hz AC motor
    Galvanized steel construction24 guage
    Includes24 Volt 20VA transformer

    General Specs

    Appliance ColorStainless Steel
    Color Finish NameStainless Steel
    ColorStainless Steel
    Voltage24
    Frequency60

    Broan® 6" Automatic Make-Up Air Damper

    Model #: MD6T
    545729
    Model #: MD6T
    Broan
    $249.00

    Visit Store For Details

    $249.00

    At a Glance

    Providing make-up air for exhaust devices is easy, controlling it is not – until now. BROAN® Directwire Make-Up Air Dampers, when interlocked with slave dampers, open in unison to provide synchronized operation for kitchen, bath and whole house ventilation products.

    Get to know this product.

    The MD6T is wired to the transformer, using low voltage wiring, which signals the damper to open and close while the range hood is in operation. The intelligent design options ensure optimum performance in a variety of installations and applications.

    Interlocked make-up air dampers provide make-up air when called for to keep the home comfortable by allowing the range hood to operate at optimum levels

    Directwire design works with select BROAN® range hoods to balance indoor air pressure by providing interlocked make-up air; damper opens automatically when fans are activated

    Slave dampers (MD6S or MD8S) are interlocked to the main automatic or universal make-up air damper and open in unison for synchronized operation. They close, along with the main damper, as soon as the range hood is powered off. Slave dampers can be “ganged” together to provide a cost effective means to provide for higher volumes of make-up air

    Interlocked make-up air damper systems meet IRC Code requirements for make-up air with range hoods over 400 CFM

    Interlocked make-up air systems avoid wasted energy associated with barometric solutions and do not let unwanted air into the home during heating or cooling activities so air pressure is equalized for a well-balanced environment

    Fresh air wall caps are required for use with Make-Up Air Dampers

    Specifications

    General Specs

    Appliance ColorStainless Steel
    Color Finish NameStainless Steel
    ColorStainless Steel
    Voltage24
    Frequency60

    Overview

    Electrical requirements24 Volt, 60 Hz AC motor
    Galvanized steel construction24 guage
    Includes24 Volt 20VA transformer
