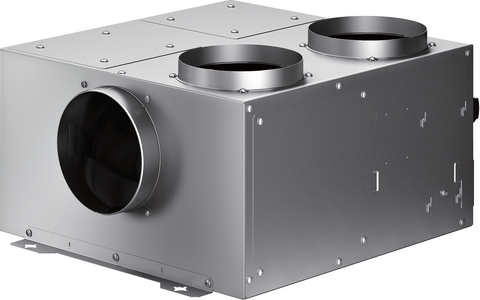

This compact remote blower offers maximum air output for downdraft and ceiling ventilation as well as for motor less hoods, such as the island and wall-mounted hoods. Installation in a separate room allows for a reduced noise level in the kitchen.
Main Facts
- Powerful remote fan unit to combine with motor less appliances 400 series
- Efficient BLDC technology
Output
- Performance output level 3/Intensive:
- Air output according to EN 61591.
- Sound power and sound pressure depending on built-in situation.
- Air extraction: 670 / 830 m³/h.
- Power levels depend on the motor less appliances, see table on page XX.
Features
- 3 electronically controlled power levels and one intensive mode.
- Fan technology with highly efficient, brushless DC motor (BLDC).
- Steel housing, zinc-plated.
- Pipe connection pieces on intake side: 1 x NW 150 round, 4 x NW 150 round.
- Pipe connection pieces on output side: 1x NW 150 round.
- Spare cover for closing air intake.
- Retaining bracket for installation on the ceiling or side of a cupboard enclosed.
Connection
- Total connected load 210 W.
- Connecting cable, NO_FEATURE, pluggable.
- Network cable 5 m.
